- Fuel: natural gas, LPG; light oil (viscosity from 1,6 cSt to 6 cSt at 20°C);
- Operation: two stage progressive or modulating with the installation of a power regulator and dedicated probes;
- Emission class: Low NOx class 3 (≤80 mg/kWh) according to EN676 in gas
WORKING DIAGRAM
TECHNICAL DATA
| Minimum power output (kW) | 320 |
| Maximum power output (kW) | 1800 |
| Fan motor (kW) | 3 |
OTHER AVAILABLE CONFIGURATIONS
- 72H = 72-hour continuous operation without stopping the burner

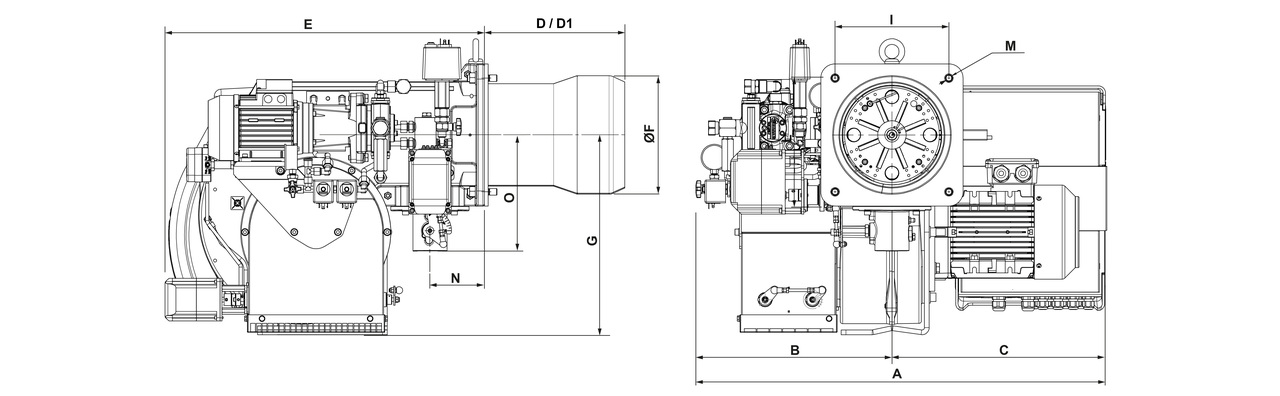

OVERALL DIMENSIONS
| A | B | C | D | D1 | E | F | G | I | L | M | N | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 898 | 503 | 395 | 288 | 488 | 745 | 250 | 421 | 240 | 240 | M14 | 123 | 245 |
